Weight: lbs/foot
Select size(s) to calculate
Material Specifications:
EN 573-3, EN 754-2, EN 754-6
Select size(s) to calculate
Material Specifications:
EN 573-3, EN 754-2, EN 754-6
Chemistry:
| C | Mn | P | S | Si | Ni | Cr | Cu | N | Mo |
| .40-1.0 | .7-1.3 | .25 Max | .10 Max | ||||||
| Co/Nb | Pb | V | Al | Ti | Fe | Zn | Sn | Mg | |
| Rem. | .10 Max | .50 Max | .20 Max | .6-1.2 |
Mechanical Properties:
| Tensile | Yield | Hardness | Elongation | Reduction Area | |||||
| 255 N/mm2 Min. | 310 N/mm2 Min. | 95 Min. (HB) |

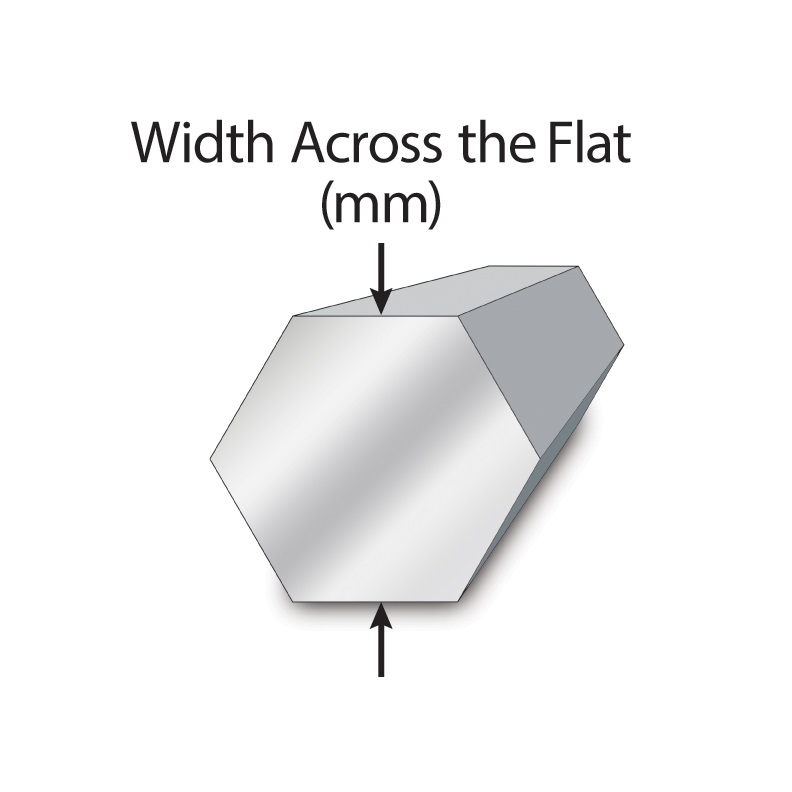

| 6082 Aluminum Hex Bar | |
| Size | Tolerance |
|---|---|
| ≥ 3mm to 6mm | 0/-.08mm |
| > 6mm to 10mm | 0/-.09mm |
| > 10mm to 18mm | 0/-.11mm |
| > 18mm to 30mm | 0/-.13mm |
| > 30mm to 50mm | 0/-.16mm |
